Duct Fabrication

duct fabrication shop

Carolina Commercial Systems duct fabrication shop saves our customers money with quick turnaround.

Carolina Commercial Systems duct fabrication shop has a combination of current technology along with traditional techniques to building duct – the best of both worlds. All built to meet the Sheet Metal and Air Conditioning Contractors’ National Association (SMACNA) standards or higher!

Duct Fabrication Procedures

Our duct fabrication process starts with a professional order form that are either brought in from outside contractors or from our mechanics.

Duct Fabrication Shop

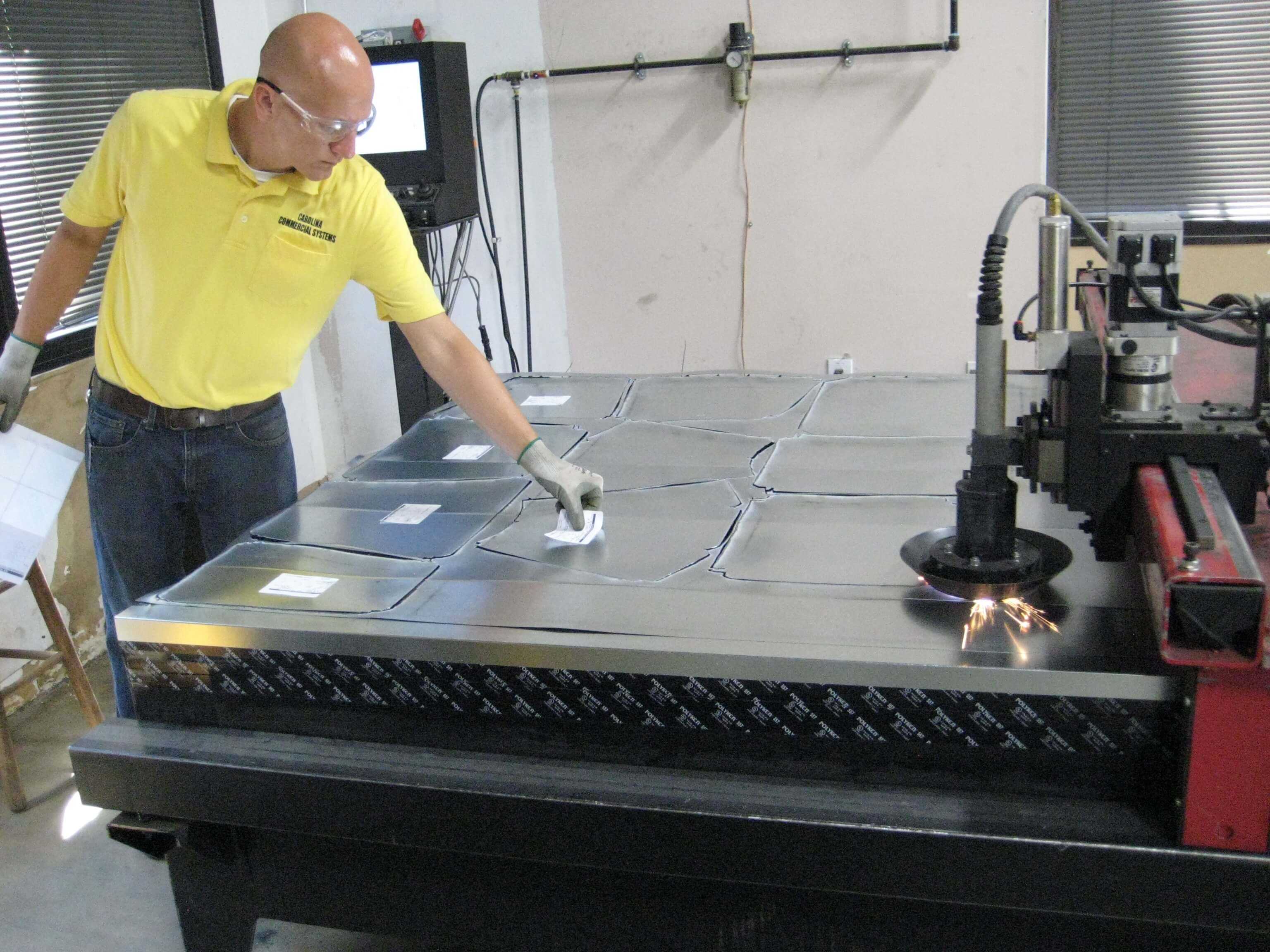

All fittings are cut out with an advanced cutting technology plasma machine. This saves time to allow us to get our products out quickly while meeting demand. After the fittings are cut, we run them through a UL listed Lockformer that will put a Pittsburg or snap lock seams on the fitting. We prefer to use Pittsburg for a better air tight seal. Finally, we have our professional sheet metal fabricators put the fittings together, and then they are ready for installation.

Straight Duct:

Straight duct is cut to length with a 5 or 10 foot shear. The duct is then laid out on a hydraulic notching machine.  Depending on the pressure class of the duct, a Pittsburg or a snap lock seam is applied with a UL Listed Lockformer machine on the straight duct. They are then folded with either a power break or hand break depending on the gauge of the metal. Last but not least, a cleat former to turn drives on the duct if desired.

Duct Fabrication Shop

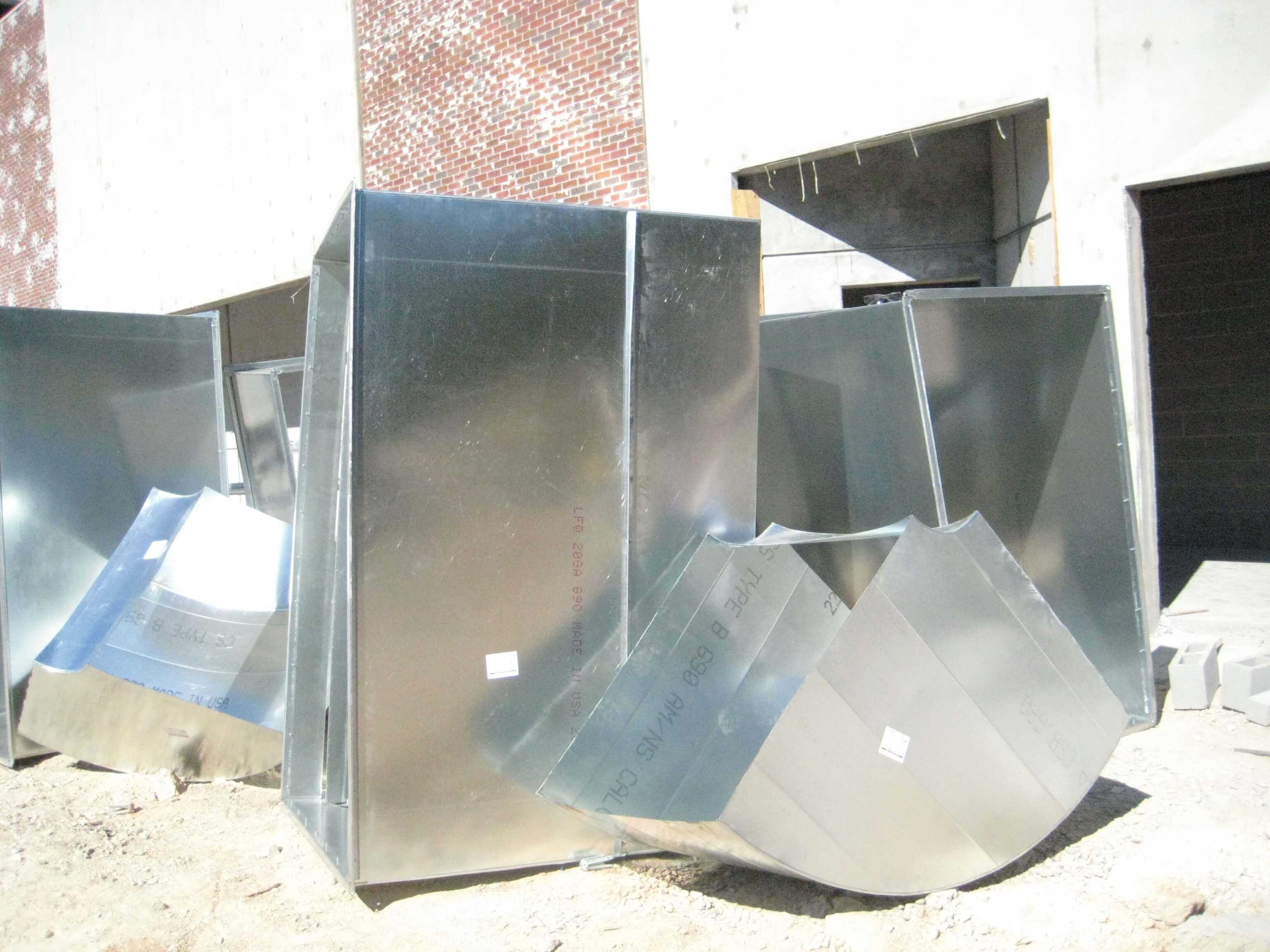

Crosspointe Church Northwest Cary YMCA: Straight duct and large elbows made in the Duct Fabrication Shop

Types of Duct Fabricated:

  • Low pressure snap lock
  • Medium and High Pressure Pittsburg
  • Lined duct (1/2”, 1” & 2”) antibacterial duct liner
  • Duct Mate
  • Drain Pans
  • Plenum boxes
  • Square to round transitions
  • Square to Square transitions
  • Offsets
  • Parker fittings
  • Radius elbows
  • Square elbows with single or double turning vanes
  • Tees
  • Branch take offs
  • We make our own Drives and S locks.
